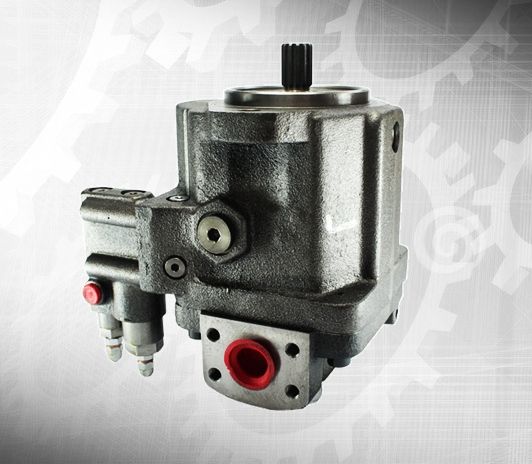

0-28 cm3 Eksenel Pistonlu Hidrolik Pompa




TECHNICAL INFORMATION     DATA
DISPLACEMENT Vgmax cm3 28
SPEED
Max. Vgmax n0 max rpm 3500
Max. Vg≤Vgmax n0 max zul rpm 3700
FLOW
at n0 max qv0 max L/min 98
at n=1500rpm qVE max L/min 42
POWER
at n0 max Po max kW 74
at nE= 1500 rpm PE max kW 31
PRESSURE
Evaluated Pressure BAR 400
Peak Pressure 420
TORQUE
at Vg max    Δp = 400 bar     Tmax Nm 149
PUMP WEIGHT kg 19.40
TANDEM CAP WEIGHT 22.23
